Stainless Steel Power Distribution Cabinet , Electrical Distribution Board IP66

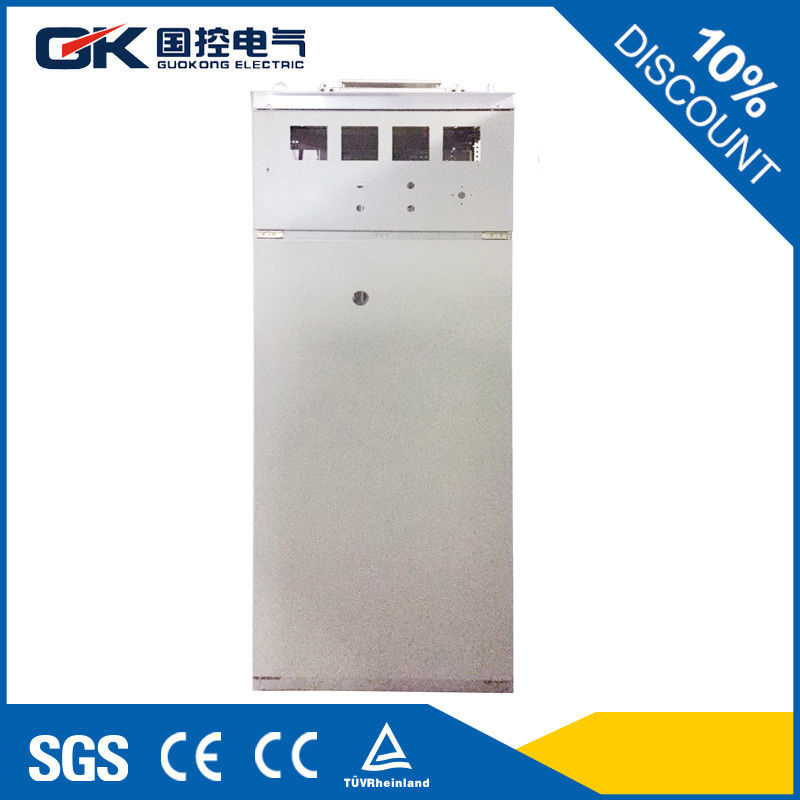

Large Image : Stainless Steel Power Distribution Cabinet , Electrical Distribution Board IP66

Product Details:

Place of Origin:	China
Brand Name:	QK
Certification:	RoHS, CE, UL,CCC,ISO9001
Model Number:	GGD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Regular export packing and can accept customized
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1000 Pieces/month

Contact Now

Detailed Product Description

Application:	Can Be Used At Home, Hotel,office Building And Any Other Places	Paint Finish:	Epoxy Polyester Coating
Lock:	Available On Request	Material:	Stainless Steel
Protection Leve:	IP66	Thickness:	1.5/2.0/2.0

JXF Stainless Steel Bending Cabinet Power Distribution Cabinet

Process characteristics and properties
1. the frame of the box body is made of ten percent off profiles, and the high-quality and special three links are welded together into a whole. The structure is solid and reliable, and the appearance is graceful.
2. the lower edge of the door plank is about 25mm away from the ground, and the rectangular frame fixed on the door panel is provided with a circular hole every 25mm, so as to not only enhance the strength of the door panel. It can also be used to install electrical wiring harness, electrical appliances and other components.
3. the top cover, side plate, back slope and bottom plate are all screwdriver fasteners fixed, easy to assemble and disassemble, and the installation work inside the cabinet is more convenient.

Standard	Height(mm)	Width(mm)	Depth(mm)	Thickness
JXF	1500	600	350	1.5/2.0/1.5
	1700	700	350	1.5/2.0/2.0
	1700	700	400	1.5/2.0/2.0
	1800	800	400	1.5/2.5/2.0
	1800	800	450	1.5/2.5/2.0
	2000	800	600	2.0/2.5/2.0

Characteristic

Product name	Distribution box
Material	Sheet Steel
OEM	Offered
Package	1 Piece Per Carton
Certification	CE,CCC,ROHS,TUS
Paint Finish	Epoxy Polyester Coating
Lock	Available On Request
Thckness	1.5/2.0/1.5
Color	Ral7035
Accessories	Wall Mount Brackets To Be Offered Seperately
