|Material:||Stainless Steel||Protection Level:||IP66|
|Paint Finish:||Epoxy Polyester Coating||Thickness:||1.5/2.0/2.0|
|MOQ:||1 Piece||Application:||Can Be Used At Home, Hotel,office Building And Any Other Places|

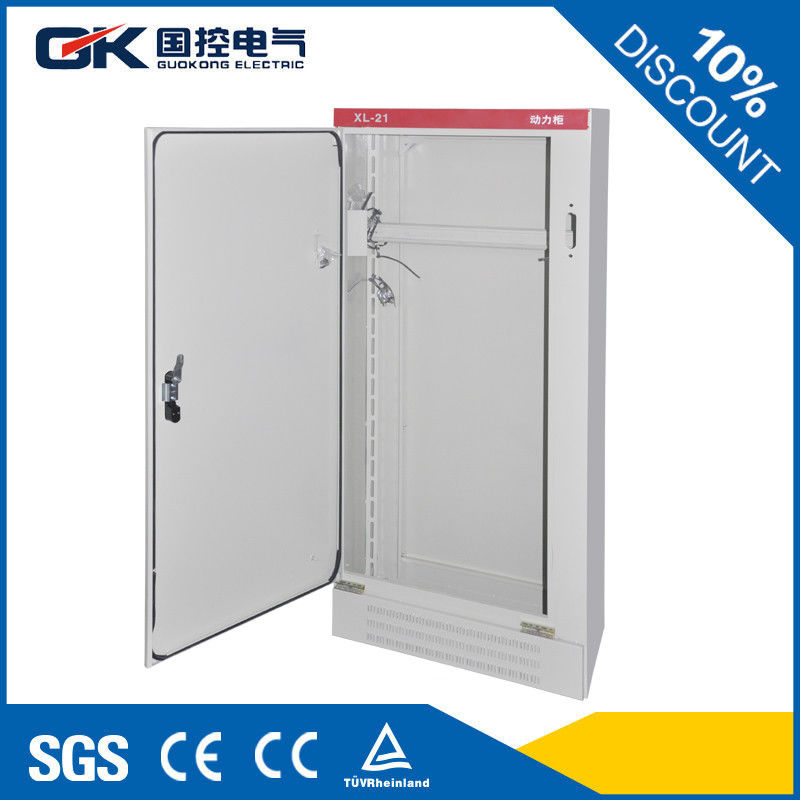

Power Distribution Cabinet Nine Bending Distibution Cabinet
The general form of the cabinet is cuboid, with 12 edges to support the cabinet. Bend the steel nine times on the bending machine. Form the profile in the diagram. It is called a nine bending section. The nine curved sections are made of 12 prismatic cabinets, which are called nine bending cabinets.
Process characteristics and properties:
1) the cabinet body skeleton adopts ten percent off type section, the circular hole or square hole of each interval 25mm of the beforehand perforated bar makes the internal installation more convenient, the special quality three passes welded into the whole, the structure is firm and reliable, the shape is beautiful.
2) the installation board can be 25mm for the unit distance, move back and forth, adjust the depth.
3) the top cover, side plate, back plate and base floor are all fixed by screws, which is easy to assemble and disassemble, and the installation work inside the cabinet is more convenient and fast.
4) the door hinge is concealed and can be opened to 130 degrees, so it is easy to install and replace.
5) the three cover plates of the floor entry holes can be replaced with each other, freely moving to facilitate the import of cables and opening of holes.
6) the installation plate is made of 2.5mm thickness cold plate, galvanized or spray painted.
7) the door plate is made of polyurethane foam sealant strips for cold rolled plates, and the required protection level can be obtained. The front and rear doors can be made single or double.
8) surface treatment: degreasing, phosphating, pickling, outdoor waterproof plastic powder.
9) color: RAL7032 or RAL7035 and optional color.
Nine bending is a vivid application of geometry in industrial manufacture, providing a cheap and practical technical scheme for the skeleton of load-bearing cabinet. Make great contributions to the development of industrial automation.
1) mounting plate distance can move from back and forth to adjust depth.
2) surface preparation:degreasing, phosphating, electrophoresis primer, outdoor waterproof cover powder.
3) Main color:RAL7032 mounting plate:orange color or galvanization.mounting plate:2.5mm.
4) According to the customers requirements,we can make different specifications.
5) the down hole have cover board ,it is easy to disassemble the front and back doors
6) The three bottom cover boards can be exchanged each other,free movement.easy to import cable, open the hole into the line.
7) The base is easy to assemble and disassemble(choose by your self)
|Product name||Distribution box|
|Package||1 Piece Per Carton|
|Paint Finish||Epoxy Polyester Coating|
|Lock||Available On Request|
|Accessories||Wall Mount Brackets To Be Offered Seperately|
