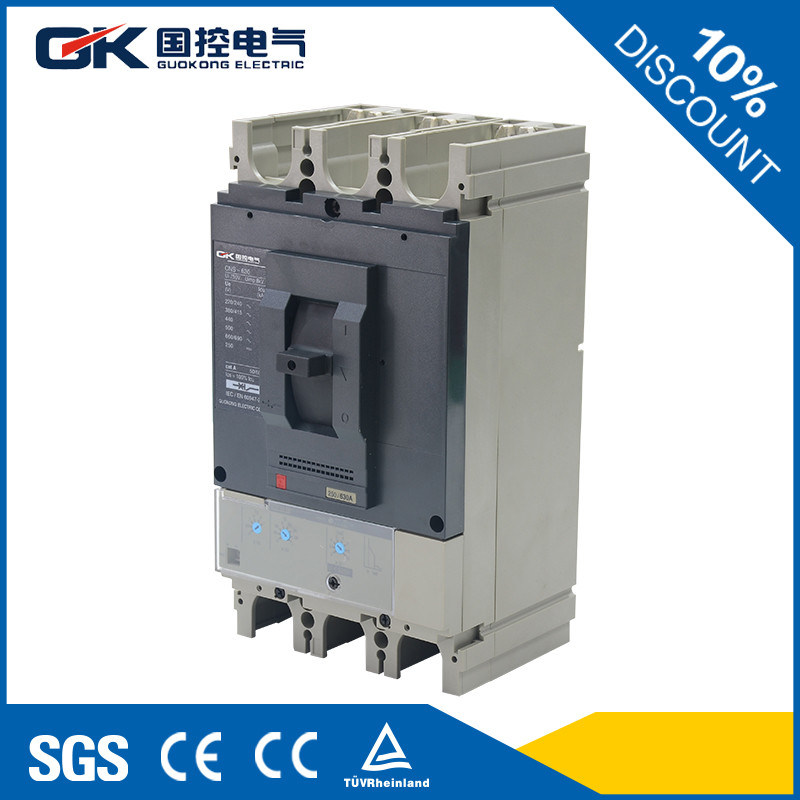

CNSX-630 Miniature Circuit Breaker Pushmatic Electronic Fuse Box Switch CE Certification
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Moulded Case | Ue: | AC50/60Hz, 440V |
|---|---|---|---|
| Ui: | 750v | Standard: | IEC60947 |
| Release Type: | Electronic | Casing Material: | PA66/PC |
4P 630A Moulded Case Miniature Circuit Breaker Electronic Switch Mccb
Specifications
1. OEM is available; high quality;
2. 100A 3P circuit breaker MCCB;
3. Professional Moulded Case Circuit Breaker factory;
4. Specialized in MCCB has been 23 years.
Advantage:
1. flame retardant material, good insulation performance, high temperature resistance
2. the wiring is fastened, and it is not easy to slide. It is internally fixed with six angle screws, with strong conductivity and large current carrying capacity.
3. high quality flame-retardant enclosure, high protection level, simple and convenient combination structure.
The materials used do not pollute the environment
No pollution of production equipment, conforming to ISO 14001 standard
Recycled materials can be recycled
The power consumption per pole is very low and can be ignored
Function and characteristics
| Item No. | CEZD100 | CEZD250 | |
| Number of poles | 1P, 2P, 3P, 4P | 3P | |
| Control | Manual | with toggle with direct or extended rotary handle |
|
| Connections | Fixed | front connections/rear connections | |
| Electrical characteristics as per IEC60947-2 and EN60947-2 | |||
| Rated current(A) | In | 15, 20 , 25, 32, 40, 50 , 63, 75, 80, 100 | 100, 125, 150, 160, 175, 200, 225, 250 |
| Rated insulation voltage(V) | Ui | 690V | |
| Rated operating voltage(V) | Ue | AC50/60Hz, 440V | |
| Rated impulse withstand voltage(kV) | Uimp | 6kV | |
| Utilization category | A | ||
| Endurance(C-O cycles) | Mechanical | 10000 | 8500 |
| Electrical 440V | 2000 | 1500 | |
| Protection | |||
| Overload protection | Bimetal | * | * |
| Instantaneous protection | Magnetic | * | * |
| Auxiliaries | |||
| Indication contacts | AX AL AXAL |
* * * |
* * * |
| Voltage releases | SHT UVR |
* * |
* * |
| Dimensions(mm) | D X H X W | 1P 60 X 130 X 25 | 60 X 165 X 105 |
| 2P 60 X 130 X50 | |||
| 3P 60 X 130 X 75 | |||
| 4P 60 X 130 X 100 | |||
