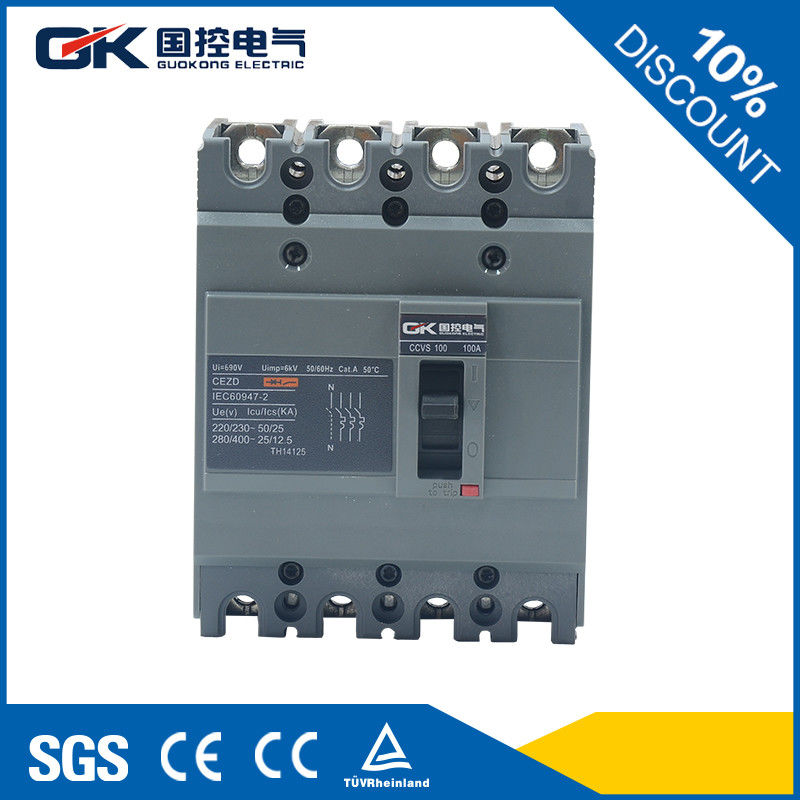

Professional Electrical Circuit Breaker MCB Electrical Circuit Panel Rating Current Up To 630A

4P Manual control Circuit Breaker Miniature Circuit Breaker

Usage and scope of application

The design of EZC series of MCCB reflects the latest current limiting principle and manufacturing technology, characterized by compact structure, full modularization, high breaking, and zero arcover. Its rated insulation voltage is 690V, rated operating voltage is AC50/60Hz, 440V and below, rated current up to 630A. It's used for generating infrequent conversion and infrequent startup of the motor.

Specifications

1.OEM is available; high quality;
2. 100A 3P circuit breaker MCCB;
3. Professional Moulded Case Circuit Breaker factory;

4.Specialized in MCCB has been 23 years.

 Process characteristics and properties

•  The frame of the box body is made of ten percent off profiles, and the high-quality and special three links are welded together into a whole. The structure is solid and reliable, and the appearance is graceful.
•  The lower edge of the door plank is about 25mm away from the ground, and the rectangular frame fixed on the door panel is provided with a circular hole every 25mm, so as to not only enhance the strength of the door panel.
•  The top cover, side plate, back slope and bottom plate are all screwdriver fasteners fixed, easy to assemble and disassemble, and the installation work inside the cabinet is more convenient.It can also be used to install electrical wiring harness, electrical appliances and other components.

Advantage:

1. flame retardant material, good insulation performance, high temperature resistance

2. the wiring is fastened, and it is not easy to slide. It is internally fixed with six angle screws, with strong conductivity and large current carrying capacity.

3. high quality flame-retardant enclosure, high protection level, simple and convenient combination structure.
