Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites

China Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites supplier
Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites supplier Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites supplier

Large Image :  Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites

Product Details:

Place of Origin: China
Brand Name: QK
Certification: RoHS, CE, UL,CCC,ISO9001
Model Number: JXF806020

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Regular export packing and can accept customized
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 1000 Pieces/month
Contact Now
Detailed Product Description
Thickness: 1.0/1.2/1.5mm Certificate: RoHS, CE, UL,CCC
Material: Sheet Steel/Stainless Steel Function: Waterproof Dustproof
Paint Finish: Epoxy Polyester Coating Technique: Powder Coating

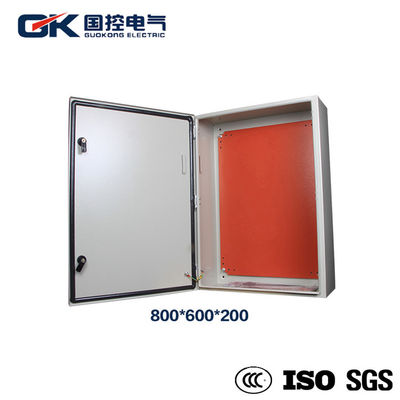

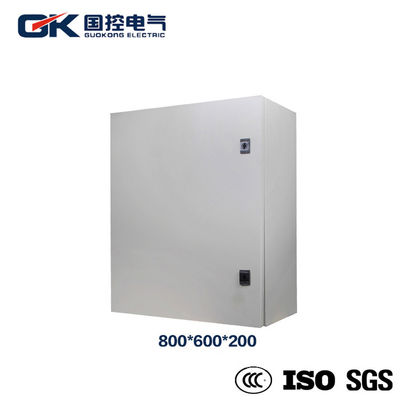

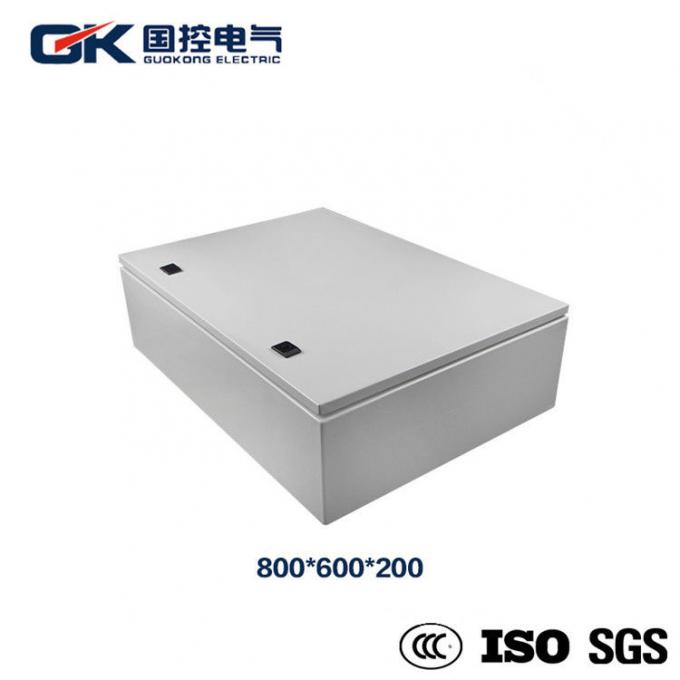

800*600*200 Electrical Indoor Distribution Box Grey Color Powder Coating JXF Distribution Box


JXF series foundation distribution box (for export) has 30 kinds of specifications, using cold rolled steel totally, made by advanced technology and CNC automatic production line which increases its compressive strength and productivity and reduces welding process. The finish is treated by cycle thermosetting epoxy polyester electrostatic spraying and powder coating, nice and durable. The door board of the box is casted by automatic sealing strip casting machine, with the advantages of dust-proof and water-proof.

of, rainwater infiltration and so on. There is a line hole under the box, with a line hole cover plate (the cover plate is equipped with a seal), the protection grade is up to IP65, the inside of the box is equipped with the installation floor, which can fit all kinds of electrical equipment and the door plate opens more than 90. Degree, turn flexibly.



Construction
1. Body and door manufactured in 1.2/1.5mm sheet stell.
2. Mounting plate with folded edge In 2.0 mm sheet steel
3. Finished with thermosetting epoxy polyester powder coating. Body and door textured finish.
4. Mounting plate in smooth finish.
5. Protection Degree IP 55/65 protection degree



Characteristic



 Product name  Distribution box
 Material Sheet Steel
 OEM  Offered
Package  1 Piece Per Carton
Certification  CE,CCC,ROHS,TUS
Paint Finish  Epoxy Polyester Coating
Lock  Available On Request
Thckness  1.2mm*1.5mm*1.5mm
Color Ral7035
Accessories Wall Mount Brackets To Be Offered Seperately



Standard  Overall Dimension
Height(mm) Width(mm) Depth(mm) Thickness(mm)
JXF302515 300 250 150 1.0/1.0/1.0
JXF403015 400 300 150 1.0/1.2/1.2
JXF504015 500 400 150 1.0/1.2/1.2
JXF403020 400 300 200 1.0/1.2/1.2
JXF504020 500 400 200 1.0/1.2/1.2
JXF604020 600 400 200 1.0/1.2/1.2
JXF605020 600 500 200 1.2/1.5/1.5
JXF705020 700 500 200 1.2/1.5/1.5
JXF806020 800 600 200 1.2/1.5/1.5
JXF1008020 1000 800 200 1.5/1.5/2.0
JXF504025 500 400 250 1.0/1.2/1.2
JXF605025 600 500 250 1.2/1.5/1.5
JXF806025 800 600 250 1.2/1.5/1.5
JXF1008025 1000 800 250 1.5/2.0/2.0
JXF1008030 1000 800 300 1.5/2.0/2.0
JXF12010030 1200 1000 300 1.5/2.0/2.0

Portable Indoor Distribution Box / Electrical Main Switch Box For Construction Sites
