Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending

China Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending supplier
Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending supplier Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending supplier Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending supplier

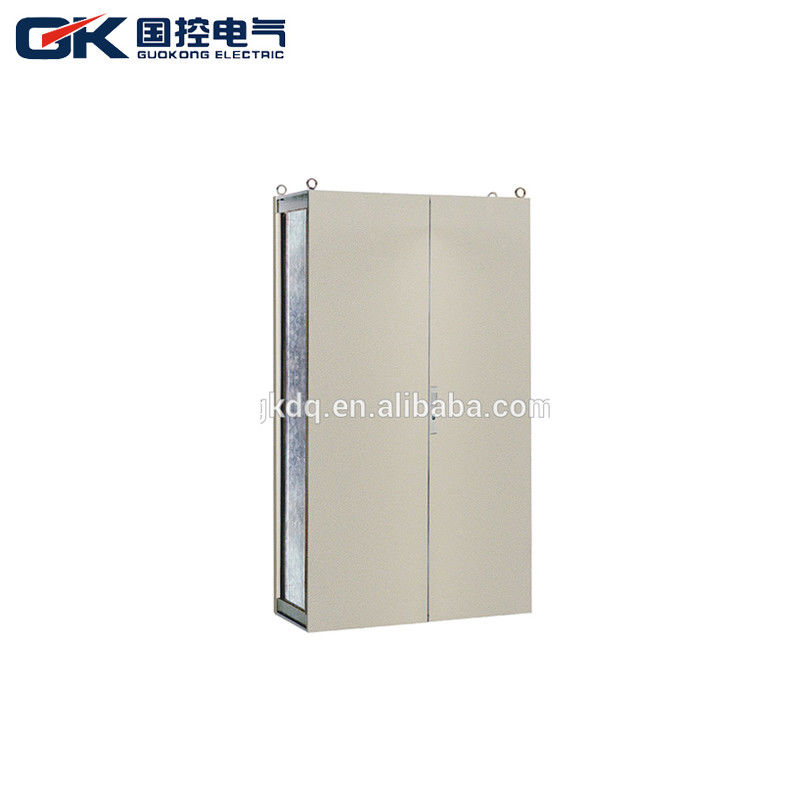

Large Image :  Load - Bearing Electrical Distribution Cabinet / Cable Electrical DB Board Nine Bending

Product Details:

Place of Origin: China
Brand Name: QK
Certification: RoHS, CE, UL,CCC,ISO9001
Model Number: 17070/40

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Regular export packing and can accept customized
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 1000 Pieces/month
Contact Now
Detailed Product Description
Material: Stainless Steel Protection Level: IP66
Paint Finish: Epoxy Polyester Coating Thickness: 1.5/2.0/2.0
OEM: Offered Application: Can Be Used At Home, Hotel,office Building And Any Other Places

Load-bearing power distribution cabinet nine bending distibution cabinet

The general form of the cabinet is cuboid, with 12 edges to support the cabinet. Bend the steel nine times on the bending machine. Form the profile in the diagram. It is called a nine bending section. The nine curved sections are made of 12 prismatic cabinets, which are called nine bending cabinets.

Cabinet component




The general nine bending cabinet components include

Nine bending 12 prism frame, front door, back plate, 2 side plate, installing the top cover, bottom ring frame and bottom.
Front door: cold rolled steel plate 2.0mm thickness, door planter dispensing machine dispensing. The door is opened 135 degrees, the door has stiffener connectors connected to the door, and the reinforcing rib is accompanied by modules. It can be used in line with the line. It can strengthen the strength of the door and facilitate the arrangement of wires.



Side plate back plate: 1.5mm thickness. Mechanical glue
With MS-820 big lock.
The overall cabinet needs to meet the dynamic load bearing 1600KG protection level to reach IP 54.





Profile meaning
Nine bending is a vivid application of geometry in industrial manufacture, providing a cheap and practical technical scheme for the skeleton of load-bearing cabinet. Make great contributions to the development of industrial automation.




Process performance and features

1. mounting plate distance can move from back and forth to adjust depth.

2. the down hole have cover board ,it is easy to disassemble the front and back doors

3. The three bottom cover boards can be exchanged each other,free movement.easy to import cable, open the hole into the line.

4. The base  is easy to assemble and disassemble(choose by your self)

5. surface preparation:degreasing, phosphating, electrophoresis primer, outdoor waterproof cover powder.

6. Main color:RAL7032  mounting plate:orange color or galvanization.mounting plate:2.5mm.

7. According to the customers requirements,we can make different specifications.



Standard Height(mm) Width(mm) Depth(mm) Thickness
JXF 1500 600 350 1.5/2.0/1.5
1700 700 350 1.5/2.0/2.0
1700 700 400 1.5/2.0/2.0
1800 800 400 1.5/2.5/2.0
1800 800 450 1.5/2.5/2.0
2000 800 600 2.0/2.5/2.0





Characteristic



 Product name  Distribution box
 Material Sheet Steel
 OEM  Offered
Package  1 Piece Per Carton
Certification  CE,CCC,ROHS,TUS
Paint Finish  Epoxy Polyester Coating
Lock  Available On Request
Thckness  1.5/2.0/1.5
Color Ral7035
Accessories Wall Mount Brackets To Be Offered Seperately
